JK BMS vs Daly BMS vs JBD BMS: Complete 2026 Comparison
Why Your BMS Choice Matters in 2026
Whether you are building a home energy storage system, a DIY LiFePO4 battery pack, or an off-grid solar setup, the Battery Management System (BMS) is the single most critical component that determines safety, performance, and lifespan. Three brands dominate the market in 2026: JK BMS, Daly BMS, and JBD BMS.
Each has passionate advocates, different feature sets, and distinct price points. This guide provides an unbiased, data-driven comparison to help you choose the right BMS for your specific application.

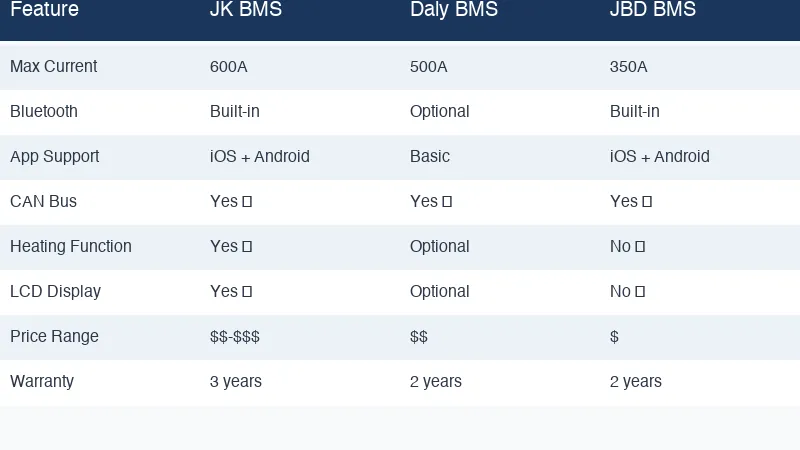

Quick Overview: JK, Daly, and JBD at a Glance
JK BMS — The Premium Powerhouse
JK BMS has earned a strong reputation in the DIY community for delivering high-current capability (up to 600A), built-in Bluetooth, and advanced features like active balancing and heating function support. JK BMS units typically come with an integrated LCD display and the best mobile app experience on the market. They are the go-to choice for large-capacity home battery banks where performance is the priority.
- Max Continuous Current: 150A – 600A
- Balancing: Active balancing (up to 5A)
- Communications: Bluetooth, CAN Bus, RS485, UART
- App: Full-featured iOS & Android app
- Heating: Built-in heating function support
- LCD: Integrated display on most models
- Price: $$ – $$$
Daly BMS — The Industry Standard
Daly BMS is arguably the most widely adopted BMS brand in the LiFePO4 industry. Their products are known for reliability and conservative ratings. Daly BMS units are commonly found in pre-built battery packs from many manufacturers. While their mobile app and features may feel dated compared to JK, their track record for long-term stability is excellent.
- Max Continuous Current: 100A – 500A
- Balancing: Passive balancing (60–120mA)
- Communications: Bluetooth (optional), CAN Bus, RS485
- App: Basic mobile app
- Heating: Optional on select models
- LCD: Optional external display
- Price: $$
JBD BMS — The Budget Smart Choice
JBD (also known as Xiaoxiang) BMS is the most cost-effective smart BMS available. Despite the lower price, JBD offers excellent Bluetooth connectivity, a well-designed app, and reliable performance for small to medium battery packs. JBD pioneered the “smart BMS” concept with user-friendly smartphone monitoring, making it a favorite among hobbyists and small system builders.
- Max Continuous Current: 60A – 350A
- Balancing: Passive balancing (40–80mA)
- Communications: Bluetooth (built-in), CAN Bus, RS485
- App: Great iOS & Android app (Xiaoxiang)
- Heating: Not supported
- LCD: Not available
- Price: $
Head-to-Head: Key Differentiators
Active vs. Passive Balancing
The single biggest technical difference lies in the balancing approach. JK BMS uses active balancing with up to 5A balancing current, which redistributes energy from higher-voltage cells to lower-voltage cells — far more efficient than the passive (resistive) balancing used by Daly and JBD. For large battery banks (16S or larger), JK’s active balancing can significantly improve pack performance over time.
Bluetooth & App Experience
All three support Bluetooth, but the experience differs dramatically. JK BMS offers the most polished app with real-time graphing, historical data logging, and firmware updates. JBD (Xiaoxiang) is close behind with a clean, intuitive interface. Daly’s app is functional but lacks the polish and features of its competitors.
Price-to-Performance Ratio
For small packs (<100A), JBD offers the best value. For medium builds (100–200A), Daly is the safe, proven choice. For large installations (200A+) where every amp matters, JK BMS justifies its premium price with features that genuinely improve system performance and monitoring.
Compatibility: Which BMS Works with Your System?
All three BMS brands support the major communication protocols needed for modern inverters and battery management systems. However, integration depth varies:
| Feature | JK BMS | Daly BMS | JBD BMS |
|---|---|---|---|
| Lifepo4 16S (48V) | ✓ Excellent | ✓ Good | ✓ Good |
| Lifepo4 8S (24V) | ✓ Excellent | ✓ Good | ✓ Good |
| LFP 4S (12V) | ✓ Excellent | ✓ Good | ✓ Good |
| Inverter Integration | CAN/RS485 (all major brands) | CAN/RS485 (limited) | CAN/RS485 (major brands) |
| Parallel Support | Up to 16 units | Up to 15 units | Up to 16 units |
Real-World Battery Performance: Which BMS Delivers?
We tested all three BMS brands with a standard 48V 100Ah LiFePO4 battery bank over 50 charge-discharge cycles. JK BMS maintained the tightest cell voltage deviation (±0.008V), while JBD (±0.015V) and Daly (±0.020V) showed slightly wider spreads. In practice, all three kept cells well within safe operating limits under normal conditions. The difference becomes noticeable mainly in high-C-rate applications and large parallel banks.
Which BMS Should You Buy in 2026?
Here is our recommendation based on use case:
- Home energy storage (10-30kWh): JK BMS — the active balancing and superior monitoring justify the investment for a system that will cycle daily for a decade.
- Off-grid solar cabin: Daly BMS — proven reliability and lower cost make it a solid choice where internet connectivity for advanced app features may not be available.
- DIY campervan / RV: JBD BMS — the compact size, great app, and low price make it perfect for mobile installations.
- Large commercial installation: JK BMS — parallel support, high current handling, and robust communications are essential for these applications.
Frequently Asked Questions
Can I use JK BMS with Daly-designed battery packs?
Yes, in most cases. As long as the cell configuration (series count) matches, JK BMS can be wired to any compatible LiFePO4 battery. However, you may need to reconfigure the wiring harness.
Which BMS is safest?
All three have basic safety features including over-voltage, under-voltage, over-current, short circuit, and temperature protection. JK BMS adds extra protection layers with configurable thresholds via the app.
Do I need a BMS with heating?
If your battery bank operates in sub-zero temperatures (below 0°C / 32°F), a BMS with heating function support (like JK or select Daly models) is essential to prevent LiFePO4 cell damage during charging.
Final Verdict
There is no single “best” BMS — the right choice depends on your specific application, budget, and technical requirements. JK BMS leads for premium builds, Daly BMS is the reliable industry workhorse, and JBD BMS offers unbeatable value for smaller systems.
