Description

Pair the SEPLOS V4 LiFePO4 DIY kit with solar panels to create a reliable home backup system. The BMS efficiently stores excess solar energy, providing power for essential appliances like refrigerators, lights, and routers during grid outages.

Please note that is DIY KIT, ONLY BOX & BMS and without battery cell.

Please kindly contact us if you need battery or any others. We have EVE battery or others for your choose.

Product accessories list

Main Part:
1*Battery box (battery container, box cover, end plate, pressure strip, active balancing board bracket, BMS fixing bracket, top cover)
1*48V 200A 16S Seplos BMS.

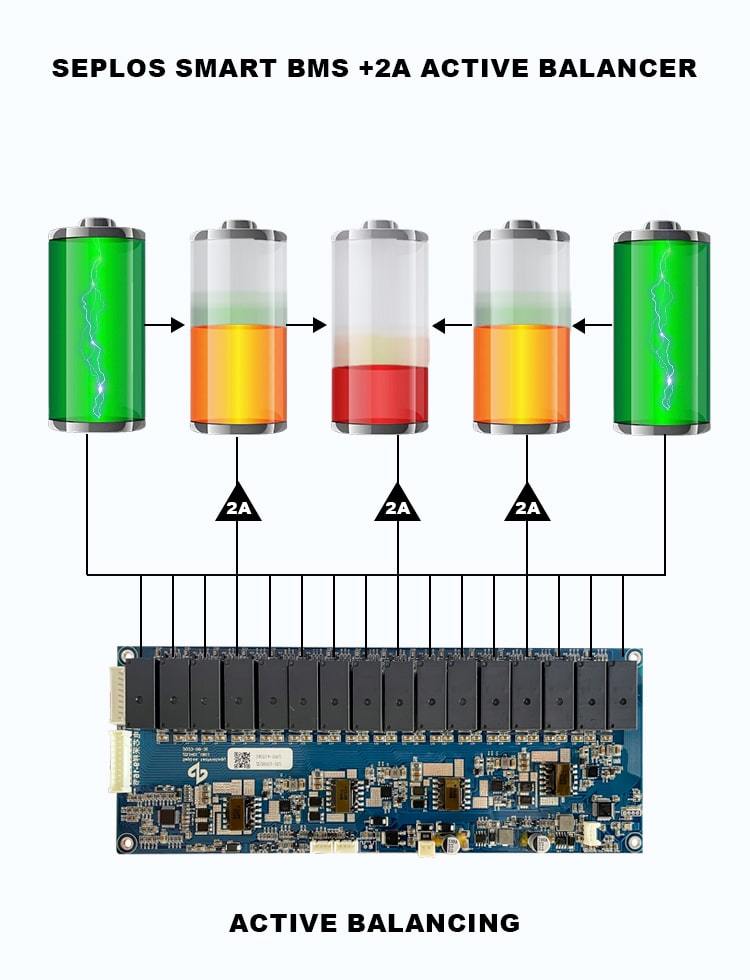

1*Active balancing board.
1*58V 400A fuse.
4*Wheels.
2*PCB board for BMS and battery connection.

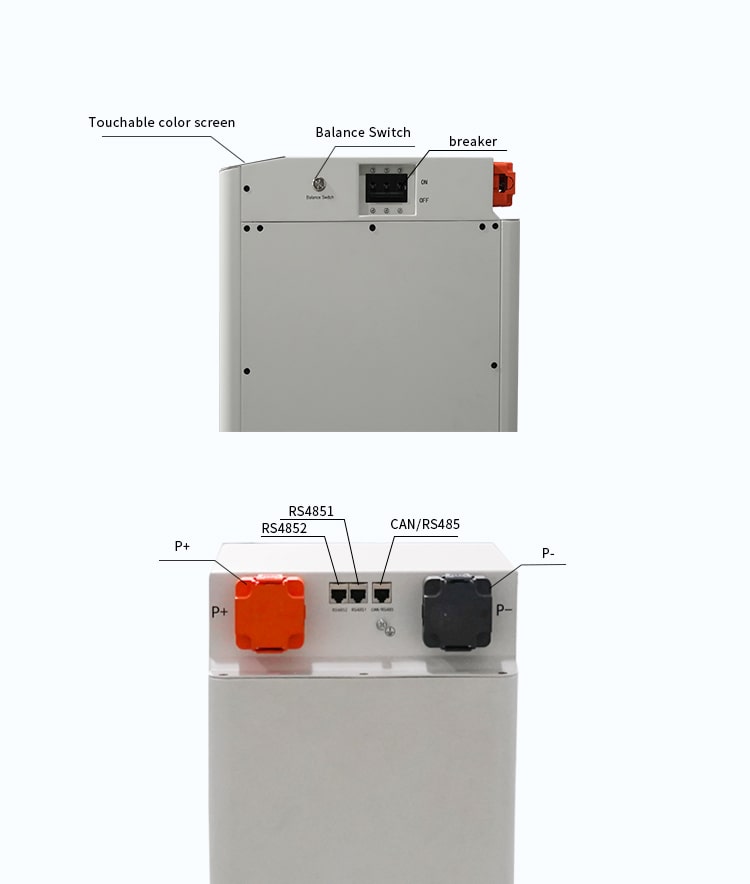

1*LCD color screen.
1*LCD screen sticker.
4*Wires (LCD color screen communication line*2,connecting PCB board A, connecting PCB board B)
1*B+power line.
1*Active balancing power line.
2*Battery terminals (P+terminal and P-terminal)
2*Metal push button switch (power switch and active balancing switch)
1*Air switch.
4*Sampling line.

Other components includes:
5*Copper busbar(BMS connection)
15*Aluminum busbar (battery connection)
6*Epoxy board(between battery cell and box body)
22*EVA tape (between cells)

Screws Details:
13*Round head screw(M3*8 For adapter boards,BMS and balancing boards)
8*round head screws(M3*6 for screen and adapter light board)
8*flat head screws(M4*10 for connectorfixing)
26*countersunk screws(M4*10 for box fixing)
18*Hexagonal screws(M6*14 for fixing wheels and fuse holders)
9*Hexagonal screws(M5*10 for pressure strips and grounding wires)
4*Hexagonal screws(M8*12 for socket fixing)
12*Hexagonal screws(M4*6 for sampling board)
2*Flange nuts(M5for BMS bracket fixing)
32*Flange nuts(M6 for copper and aluminum bar fixing)
6*Countersunk screws(M3*5 for air switch fixing)
6*Hexagonal screws(M8*35 for end plate fixing)
