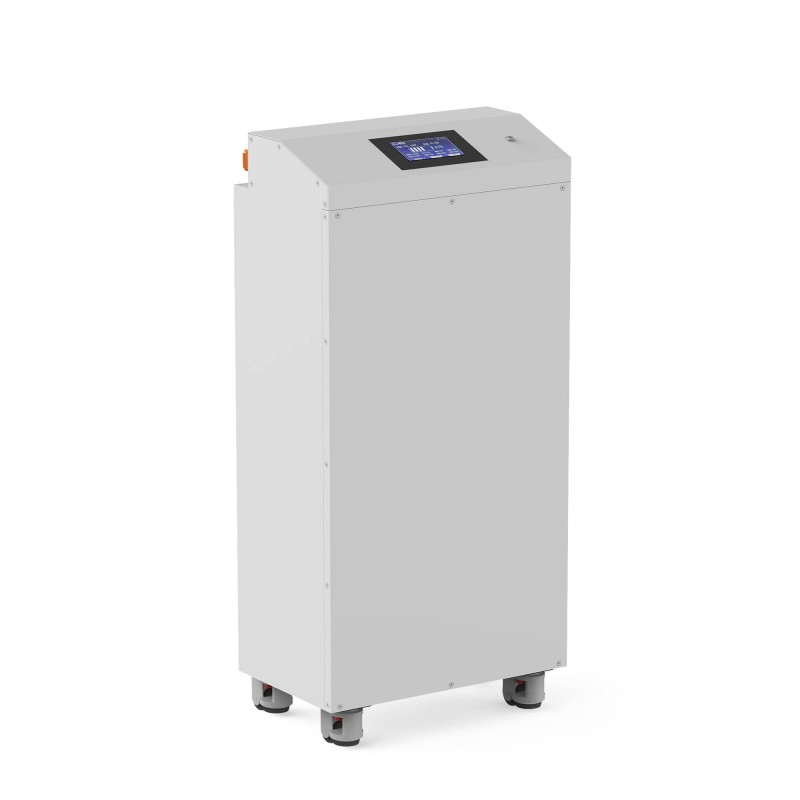

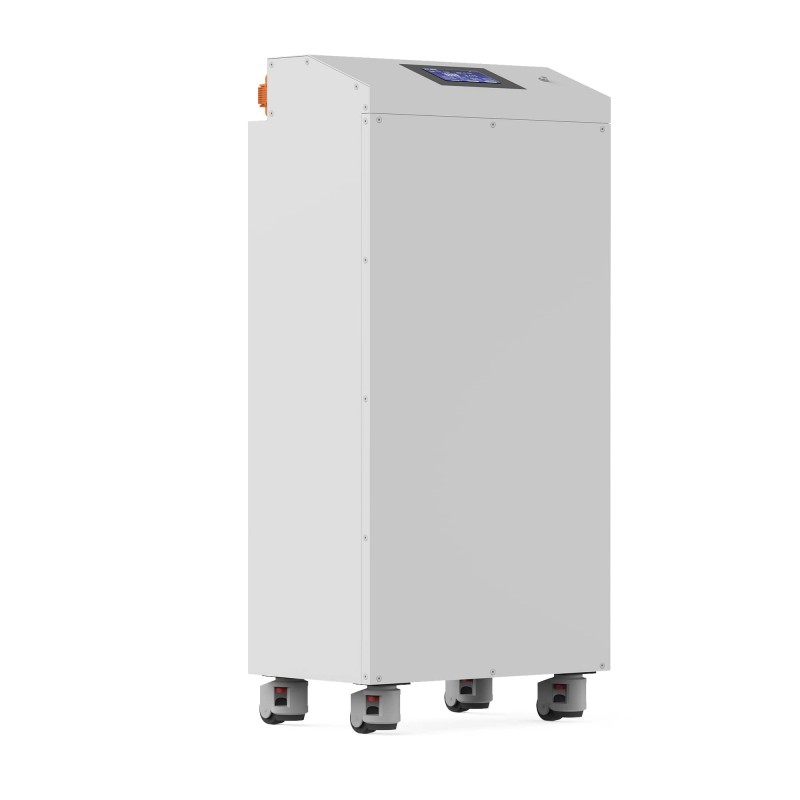

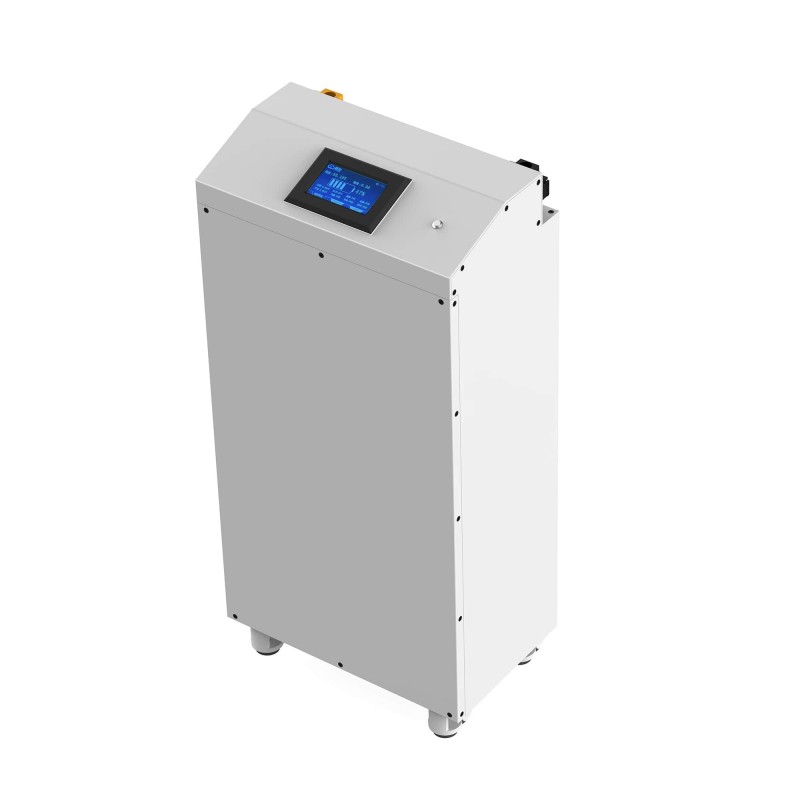

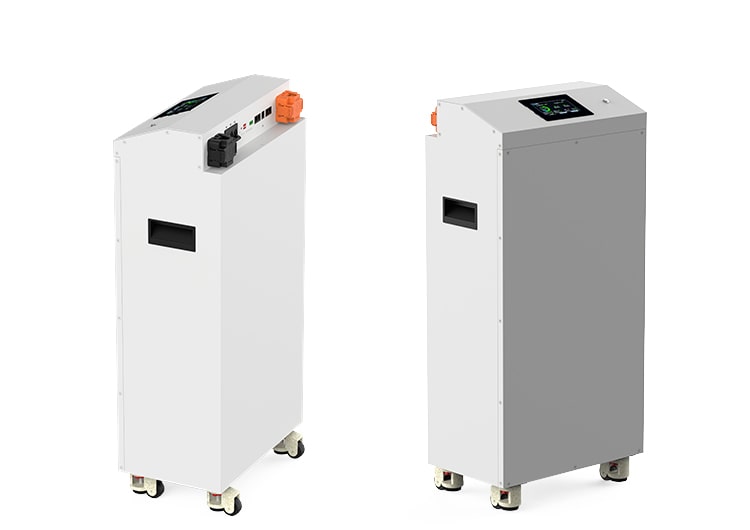

INSUM 280L-JK LiFePO4 Battery Box with JK BMS DIY Kit
Original price was: $799.00.$599.00Current price is: $599.00.
The kit’s highlight is its integrated JK V19 BMS—a trusted component in the energy storage industry that provides comprehensive protection against overcharge, over-discharge, short circuits, overcurrent, and high temperatures. Calibrated for seamless compatibility with LiFePO4 battery chemistries, this BMS extends battery cycle life and prevents safety risks, making it a reliable choice for both novice and experienced builders.
Description
The INSUM 280L-JK LiFePO4 Battery Box with JK V19 BMS DIY Kit is a high-performance solution for building custom LiFePO4 battery packs. Equipped with a genuine JK BMS, this kit combines durable housing and professional battery protection, catering to off-grid living enthusiasts, solar energy users, and DIY hobbyists. It streamlines the battery assembly process, eliminating the need to source separate BMS and enclosure parts, while ensuring long-term safety and stability for your energy storage setup.

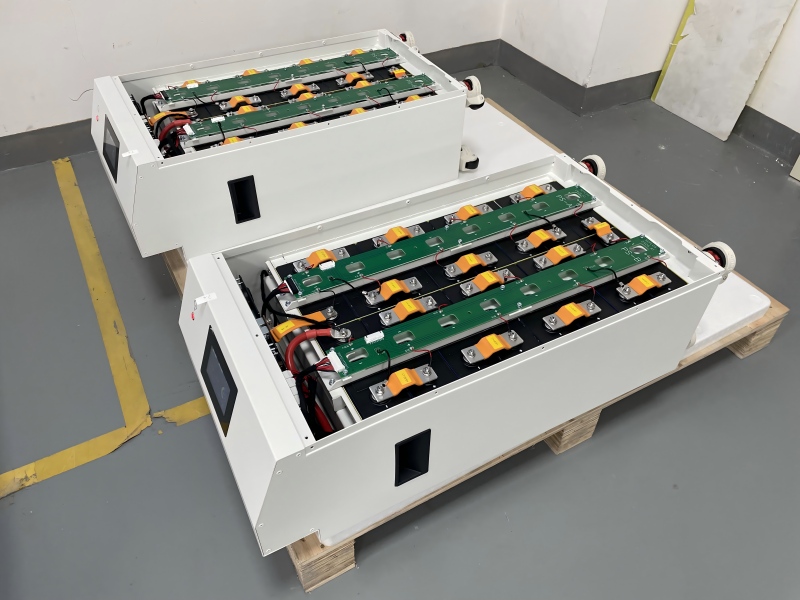

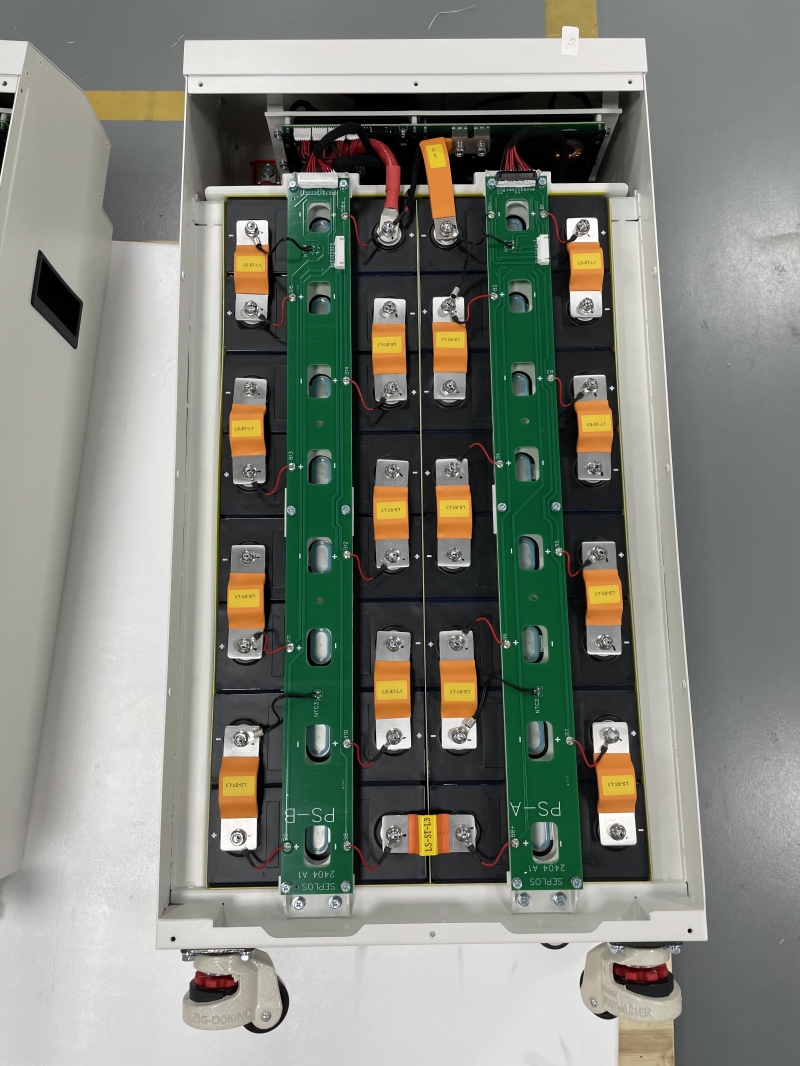

Please note that is DIY KIT, ONLY BOX & BMS and without battery cell.
Please kindly contact us if you need battery or any others. We have EVE battery or others for your choose.
| No. | Item | Specification |
| 1 | Battery Configuration | 1P16S |

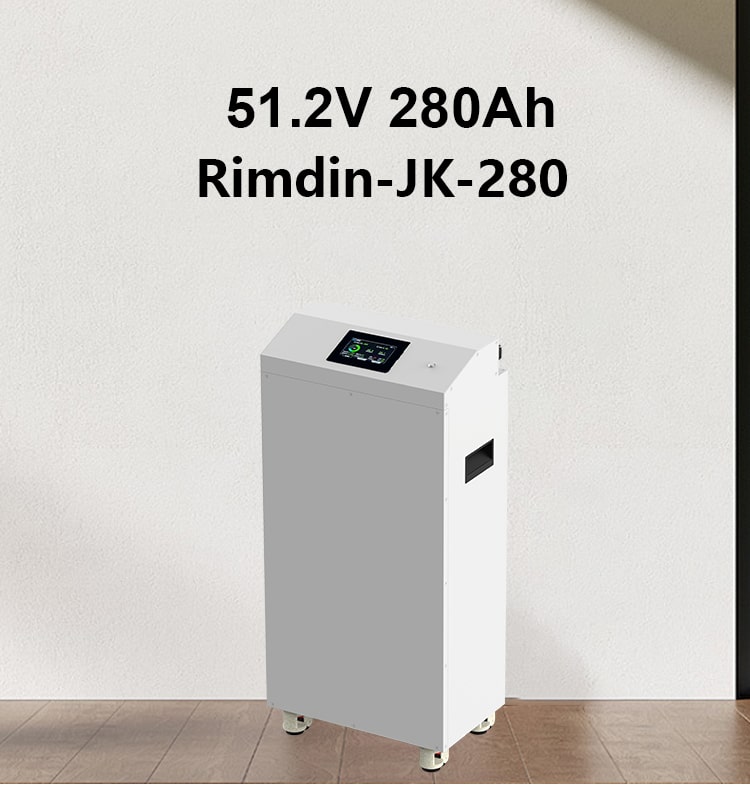

| 2 | Rated Voltage | 51.2V |
| 3 | Operating Voltage Range | 41.6V~57.6V |
| 4 | Rated Capacity | 280Ah or 314Ah |
| 5 | Capacity | 16pcs LiFePo4 batteries cell |
| 6 | Standard Charge/Discharge Current | 100A @25±2℃ |
| 7 | Maximum Charge Current | 200A@25±2℃ |
| 8 | Maximum Discharge Current | 200A @25±2℃ |
| 9 | Operating Environment Temperature | 0～55℃(Charge) |
| -20～55℃(Discharge) | ||
| 10 | Storage Temperature,Humidity | -10℃~35℃(Storage within one month) 25±2℃(Storage within three months) 65%±20%RH |

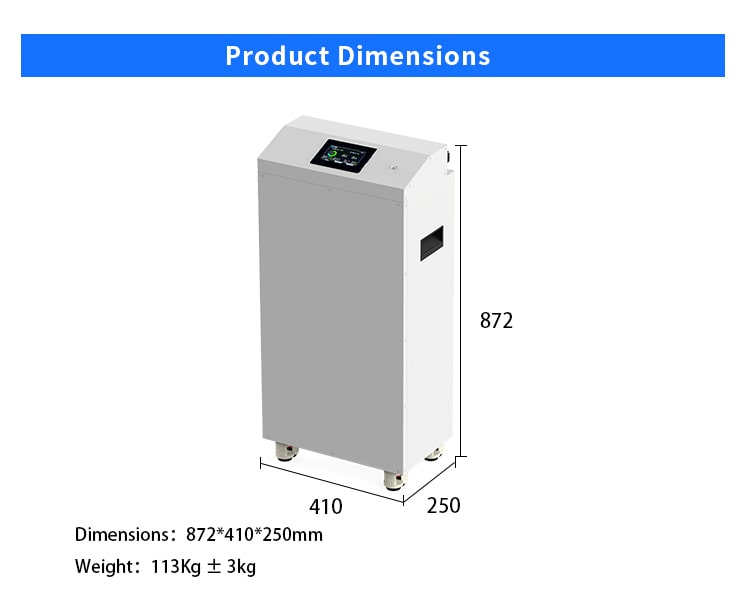

| 11 | Dimensions(LxWxH) | ( 410 )×( 250 )×( 800 + 72 )mm |
| 12 | Weight | 113Kg±3kg (including battery) |
| 13 | Cycle Life | 8000 cycles @25℃ 100A Charge/Discharge Current 80%DOD |
| 18 | IP Rating | IP 20 |
| 20 | Altitude | 0-3000m |
| 21 | Humidity Range | 5~90% |
